4! LYNCH patrol craft (1964-1967)
Lynch 1969
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Lynch | GC21 | AFNE, Río Santiago | 20.5.1964 | in service (2019) | |||
| Toll | GC22 | AFNE, Río Santiago | 7.7.1966 | in service (2019) | |||
| Erezcano | GC23 | AFNE, Río Santiago | 1967 | stricken 1986 |
Technical data
| Displacement normal, t | 100 |
|---|---|
| Displacement full, t | 117 |
| Length, m | 27.4 |
| Breadth, m | 5.80 |
| Draught, m | 1.85 |
| No of shafts | 2 |
| Machinery | 2 Maybach diesels |
| Power, h. p. | 2700 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000 |
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | Decca radar |
| Complement | 16 |
Standard scale images
Lynch 1968
Graphics

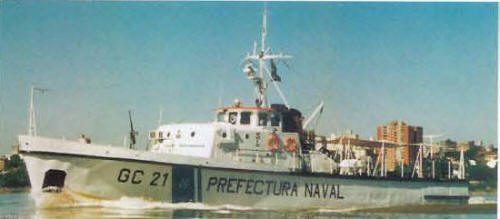

Lynch 1997

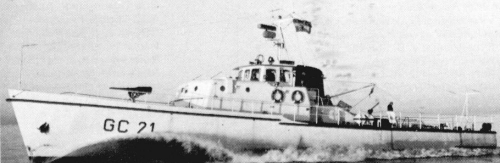

Lynch 1969
Project history
Designed after the USCG Cape class. Prefectura Naval.
Modernizations
None.
Naval service
No significant events.
