INTRÉPIDA fast attack craft (torpedo) (1974)

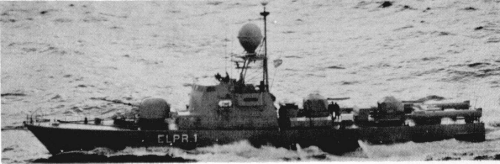

Intrépida 1978
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Intrépida | P85 | Lürssen, Vegesack, West Germany | 2.12.1973 | 3.8.1974 | in service (2019) | ||
| Indómita | P86 | Lürssen, Vegesack, West Germany | 8.4.1974 | 10.4.1975 | in service (2019) |
Technical data
| Displacement normal, t | 240 |
|---|---|
| Displacement full, t | 268 |
| Length, m | 42.3 pp 44.9 oa |
| Breadth, m | 7.40 |
| Draught, m | 2.28 propellers |
| No of shafts | 4 |
| Machinery | 4 MTU MD872 diesels |
| Power, h. p. | 14400 |
| Max speed, kts | 37 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1700(16) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 40/70 Breda-Bofors 564, 2 - 533 TT |
| Electronic equipment | Decca 626, WM-22, M-11 radars, Cutlass ECM suite |
| Complement | 42 |
Standard scale images

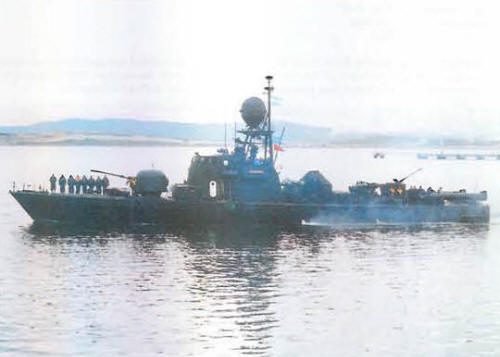

Intrépida 2000
Graphics
Intrépida 1978
Intrépida 2001
Project history
TNC45 design, ordered in 1970. The TT fire SST4 torpedoes.
Modernizations
1997, Intrépida: - 1 x 1 - 40/70; + 2 x 1 MM38 Exocet SSM (2 MM38)
2014, Indómita: diesels were replaced by 4 Volvo-Penta AMT D34 (6000hp, 22kts); - 1 x 1 - 76/62, 2 x 1 - 40/70, 2 - 533 TT; Decca 626, WM-22 radars; + 2 x 1 - 12.7/90, 2x nav. radars
Naval service
Since 2014 Indómita serves as patrol for Southern Seas.
