BARADERO patrol craft (1978-1979)

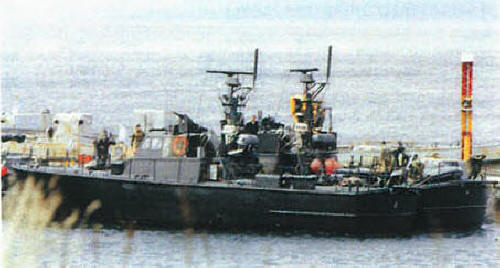

Baradero 1998

Ships


Names Builders Commissioned Losses Transfers Discarding

P61 Baradero

P62 Barranqueras

P63 Clorinda

P64 Concepción del Uruguay

Israeli Aircraft Industries, Haifa, Israel: P61-64

1978: P62

1979: P61, 63, 64

None

None

in service (2019): P61-64



Technical data


Displacement normal, t

31

Displacement full, t39
Length, m

19.8

Breadth, m

5.50

Draught, m

1.80

No of shafts

2

Machinery2 General Motors 12V71TA diesels
Power, h. p.840
Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)450(13)
Armament

2 x 1 - 20/70 Mk 10, 2 x 2 - 12.7/90

Electronic equipmentDecca 101 radar
Complement

8



Standard scale images


<i>Baradero </i>2000
Baradero 2000


Graphics


<i>Baradero </i>1998
Baradero 1998


Project history

Israeli Dabur class. Aluminium construction.

Modernizations

None.

Naval service

No significant events.
