ANZOATEGUI patrol boat (1945/1947)
Anzoategui 1971
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
G31 Anzoategui |
USA: G31 |
1945 // 1947: G31 |
None |
None |
1981: G31 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 32 |
| Length, m | 19.3 |
| Breadth, m | 4.70 |
| Draught, m | 0.90 |
| No of shafts | 2 |
| Machinery | 2 General Motors 8V71 diesels |
| Power, h. p. | |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 10 |
Graphics

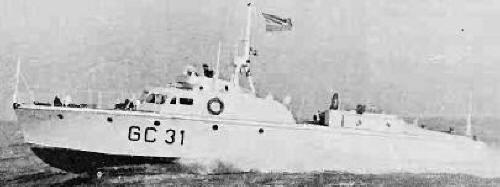

Anzoategui 1971
Project history
Former USN AVR type SAR boat.
Modernizations
None.
Naval service
No significant events.
