Almirante Brown 1882

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Almirante Brown			Samuda, Poplar, UK		6.10.1880	1882	stricken 11.1932

Technical data

Displacement normal, t
Displacement full, t	4200
Length, m	73.2 pp
Breadth, m	15.2
Draught, m	6.25 max
No of shafts	2
Machinery	2 VC, 8 cylindrical boilers
Power, h. p.	5400
Max speed, kts	14
Fuel, t	coal 650
Endurance, nm(kts)	3000(10)
Armour, mm	compound; belt: 229 - 152, ends: 190 - 38, battery: 203 - 152, CT: 203
Armament	8 x 1 - 203/26 Armstrong A, 6 x 1 - 120/24 Armstrong, 2 x 1 - 57/40 Hotchkiss
Complement	520

Standard scale images

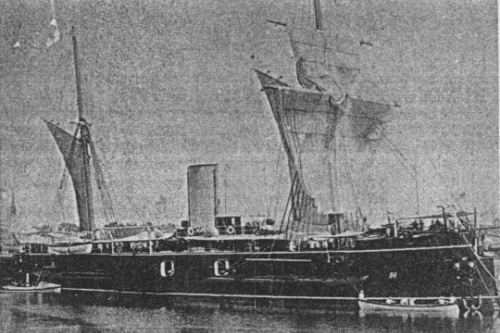

Graphics

Project history

Small battery ship with a ram bow, short forecastle and poop. Steel hull had double bottom and was sheathed in wood and zinc. Six 203mm guns were in the battery, four fired ahead, two astern. One 203mm gun was installed at the bow and one at the stern.

Ship protection

Main belt under battery was 229mm above and 152mm below waterline, reducing from 90mm to 38mm at ship ends. It extended from 1.2m below wl to 0.9m above. There were 190-140mm thick bulkheads. Battery was protected by 152mm upper and 203mm lower belts. The deck above battery was 16mm-thick, lower deck at ship ends had 38-32mm thickness.

Modernizations

(1897-1898, F C de la Mediterranée, La Seyne, France): artillery was completely replaced by 10 x 1 - 150/50 Canet M1896, 6 x 1 - 120/50 Canet M1896, 2 x 1 - 47/40 Hotchkiss, 2 - 450 TT (beam)

Naval service

No significant events.
