PALMETTO patrol launch (1995)
Palmetto 2004
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P02 Palmetto |
SeaArk, Monticello, USA: P02 |
1995: P02 |
P02 (foundered during cyclone 9.2017) |
none |
none |
Technical data
| Displacement standard, t | 12 |
|---|---|
| Displacement full, t | 15 |
| Length, m | 11.1 wl 12.2 oa |
| Breadth, m | 3.86 |
| Draught, m | 0.69 hull |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3208TA diesels |
| Power, h. p. | 850 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(22) |
| Armament | 2 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Raytheon R40X radar |
| Complement | 5 |
Graphics

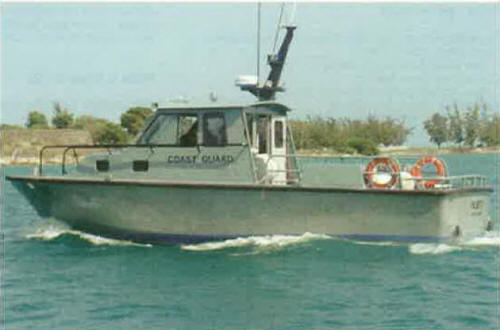

Palmetto 2004
Project history
US Dauntless class, aluminium construction.
Modernizations
none
Naval service
No significant events.
