LIBERTA patrol boat (1984)
Liberta 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P01 Liberta |
Swiftships, Morgan City, USA: P01 |
1984: P01 |
none |
none |
2017-18: P01 |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | 36 |
| Length, m | 20.0 |
| Breadth, m | 5.59 |
| Draught, m | 1.52 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71TI diesels |
| Power, h. p. | 1350 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(18) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Raytheon 1210 radar |
| Complement | 9 |
Graphics

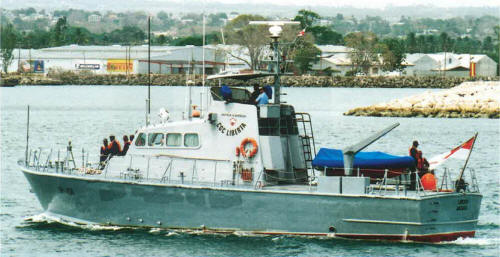

Liberta 2003
Project history
US 65ft Commercial Cruiser class, aluminium construction.
Modernizations
none
Naval service
No significant events.
