No167 fast attack craft (missile) (1965/1967)







Ships


Name No Yard No Builder Laid down Launched Comp Fate
  167, 1980- 643   Primorskiy Yd, Leningrad, USSR     1965 // 11.1967 explosion 1981
  267, 1980- 641   Primorskiy Yd, Leningrad, USSR     1965 // 10.1967 deleted 2003-05
  367, 1980- 642   Primorskiy Yd, Leningrad, USSR     1965 // 11.1967 deleted 2003-05


Technical data


Displacement standard, t

184

Displacement full, t

226

Length, m

38.6

Breadth, m

7.60

Draught, m

1.84

No of shafts

3

Machinery

3 M-504B diesels

Power, h. p.

15000

Max speed, kts

42

Fuel, t

diesel oil

Endurance, nm(kts)

1800(14)

Armament

4 x 1 P-15/P-15T SSM (4 P-15/P-15T), 2 x 2 - 30/71 AK-230

Electronic equipment

MR-101 Rangout, MR-104 Rys' radars

Complement

28



Standard scale images

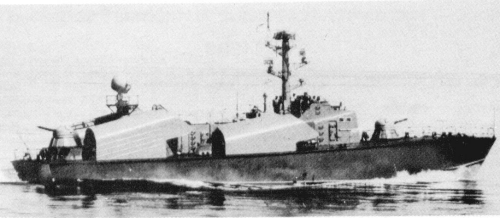

<i>641 </i>1970
641 1970


Graphics





Project history

Soviet Project 205 FAC (missile).

Modernizations

None.

Naval service

No 643 was lost in explosion in 1981.
