ADMIRAL CHICHAGOV coast defence turret ships (1869)





Admiral Chichagov

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Адмирал Спиридов [Admiral Spiridov]     Semyannikov & Poletika, St. Petersburg 20.11.1866 28.8.1868 1869 stricken 8.1907
Адмирал Чичагов [Admiral Chichagov]     Semyannikov & Poletika, St. Petersburg 20.11.1866 13.10.1868 1869 stricken 8.1907


Technical data


Displacement normal, t

Admiral Chichagov: 3925

Admiral Spiridov: 3851

Displacement full, t
Length, m

77.5 wl

Breadth, m

13.1

Draught, m

5.94 - 6.22 max

No of shafts

1

Machinery

1 HDA, 4 rectangular boilers

Power, h. p.

2030

Max speed, kts

10.5

Fuel, t

coal 300

Endurance, nm(kts)
Armour, mm

Admiral Chichagov: wrought iron; side: 152, turrets: 152

Admiral Spiridov: wrought iron; side: 152, turrets: 178

Armament

2 x 2 - 229/17 obr. 1867, 4 x 1 - 87/17 4pdr obr. 1867

Complement

260



Standard scale images


<i>Admiral Chichagov </i>1870
Admiral Chichagov 1870


Graphics

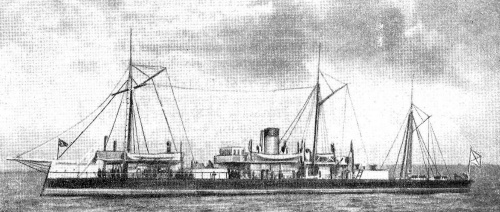

<i>Admiral Chichagov</i>
Admiral Chichagov


Project history

Similar to the Lazarev class but with two turrets and heavier armour.

Ship protection

The side armour was complete, and at designed draught extended from 1.7m above wl to 1.5m below. There was no armour deck.

Modernizations

1874, both: - 2 x 2 - 229/17; + 2 x 1 - 279/17 obr. 1867

1870s, Admiral Chichagov: - 2 x 1 - 279/17; + 2 x 1 - 279/18 obr. 1877

1887, Admiral Chichagov; 1904, Admiral Spiridov: were reboilered with 4 cylindrical boilers

1890s, both: - 1 x 1 - 44/41; + 2 x 1 - 63/17 Baranovski, 1 x 1 - 47/40 Hotchkiss, 4 x 1 - 37/20 Hotchkiss

Naval service

No significant events.
