AMPHITRITE monitors (1891 - 1896)





Amphitrite

Ships


No Name Yard No Builder Laid down Launched Comm Fate
M2 Amphitrite 253 Harlan & Hollingsworth, Wilmington // Norfolk N Yd, Portsmouth 1874 7.6.1883 23.4.1895 stricken 7.1919
M3, 1920- BM3 Monadnock   Continental Iron Wks, Vallejo // Mare Is N Yd, Vallejo 1875 19.9.1883 20.2.1896 auxiliary 7.1921
M4 Terror 195 Cramp, Philadelphia // New York N Yd, Brooklyn 1874 24.3.1883 15.4.1896 TS late 1901, target 12.1915
M5 Miantonomoh 157 John Roach, Chester // New York N Yd, Brooklyn 1874 5.12.1876 27.10.1891 target 12.1915


Technical data


Displacement normal, t

3990

Displacement full, t
Length, m

BM2: 80.1

BM3: 79.9

BM4, 5: 80.2

Breadth, m

16.9

Draught, m

BM2, 3, 5: 4.42 mean

BM4: 4.47 mean

No of shafts

2

Machinery

BM2: 2 HCE, 4 Babcock & Wilcox boilers

BM3: 2 HTE, 4 cylindrical boilers

BM4, 5: 2 HCE, 6 cylindrical boilers

Power, h. p.

BM2, 4, 5: 1600

BM3: 3000

Max speed, kts

BM2, 4, 5: 12

BM3: 14.5 (really 11.6)

Fuel, t

BM2, 4, 5: coal 270

BM3: coal 386

Endurance, nm(kts)1090(10)
Armour, mm

BM2, 3: steel, iron - belt: 229, deck: 44, barbettes: 292, turrets: 190, CT: 190

BM4: steel, iron - belt: 178, deck: 44, turrets: 292, CT: 190

BM5: steel, iron - belt: 178, deck: 44, turrets: 292, CT: 229

Armament

BM2, 3: 2 x 2 - 254/31 Mk II, 2 x 1 - 102/40 Mk III/IV/V/VI, 2 x 1 - 57/40 Hotchkiss Mk I/II, 2 x 5 - 37/20 Hotchkiss Mk I

BM4: 2 x 2 - 254/31 Mk II, 2 x 1 - 57/40 Hotchkiss Mk I/II, 2 x 5 - 37/20 Hotchkiss Mk I

BM5: 1 x 2 - 254/35 Mk I, 1 x 2 - 254/31 Mk I, 2 x 1 - 57/40 Hotchkiss Mk I/II, 2 x 5 - 37/20 Hotchkiss Mk I

Complement

150 - 191



Standard scale images

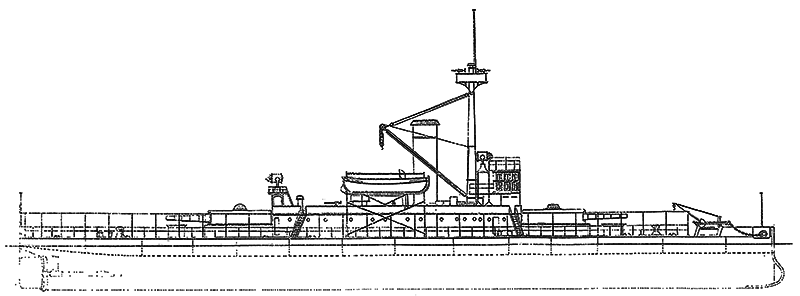

<i>Amphitrite</i> 1896
Amphitrite 1896


Graphics

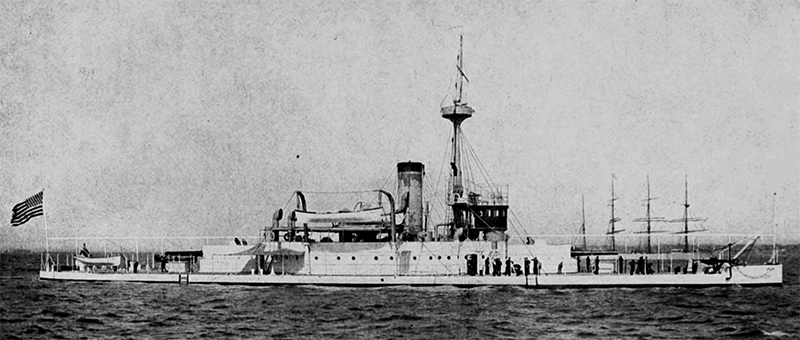

<i>Amphitrite</i>
Amphitrite

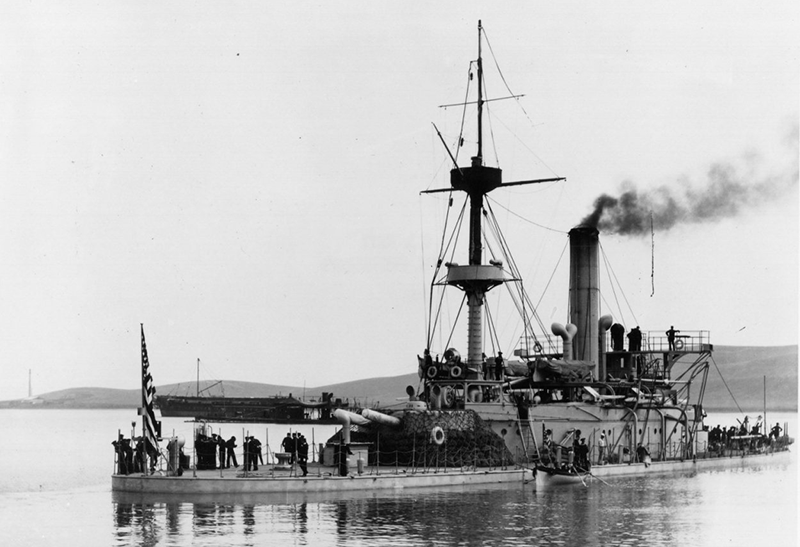

<i>Monadnock</i> off Mare Island 1898
Monadnock off Mare Island 1898
<i> Miantonomoh</i> 1892
Miantonomoh 1892

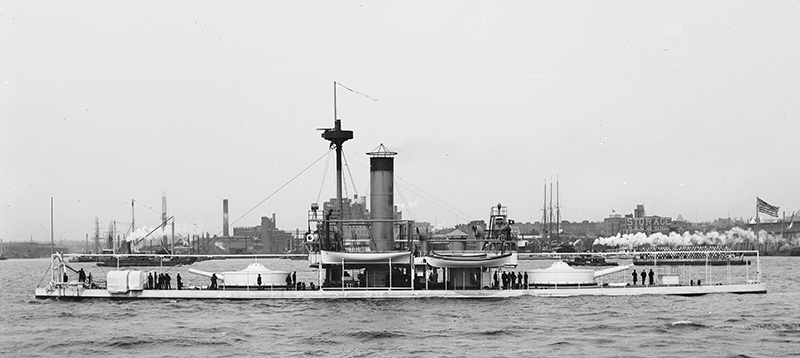

<i>Terror</i> off New York 1897
Terror off New York 1897

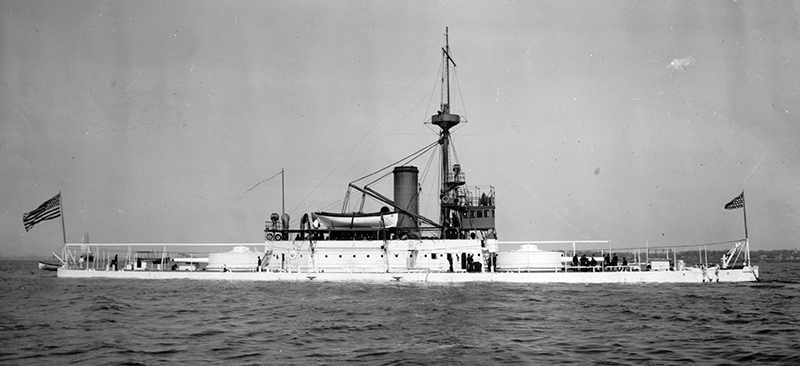

<i>Amphitrite</i>
Amphitrite


Project history

As with Puritan this class bore little resemblance to the Civil War ships of which they were 'repairs'. Miantonomoh was commissioned when quite incomplete from October 1882 to March 1883, but the completion of the ships as above was not authorized till the Act of 3.8.1886 (Miantonomoh 3.3.1887) - and ordered 1887-1890. They were iron-hulled with steel deck over the belt, and Amphitrite and Monadnock differed from the other two in having barbettes to their turrets, while Terror had pneumatically powered mountings. Monadnock never made her intended 14.5kts, trial speed being 11.63kts.

Ship protection

Steel 44mm armour deck was connected with upper edge of iron main belt. 178 (or 229mm)mm belt extended about 1.2m below and 0.6m above lwl, its thickness was 127mm at ship ends. There were no barbettes, turrets had 292mm sides. Funnel uptakes had 267mm protection, ventilator 229mm. CT had 229mm or 190mm sides.

Modernizations

none.

Naval service

Monadnock served as submarine tender and target tug from January, 1912 but redesignated IX17 only in July, 1921. The other three were rarely in full commission except during the Spanish-American war. Miamonomoh was stricken at the end of 1915 for use as a target but not sold till 1922, and Terror was also stricken at the same time.
