PAULDING destroyers (1910-1911)

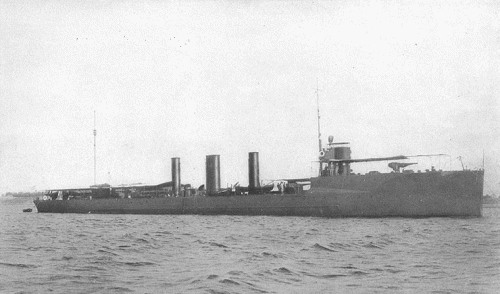

Perkins 1910

Burrows 1911

No

Name

Yard No

Builder

Laid down

Launched

Comm

Fate

DD22, 4/1924- CG17, 10/1930- DD22

Paulding

52

Bath Iron Wks

7/1909

12/4/1910

9/1910

Coast Guard cutter 4/1924, destroyer 10/1930, stricken 6/1934

DD23

Drayton, 7/1933- unnamed

53

Bath Iron Wks

8/1908

22/8/1910

10/1910

stricken 3/1935

DD24, 6/1924- CG18, 10/1930- DD24

Roe

115

Newport News

1/1909

24/7/1909

9/1910

Coast Guard cutter 6/1924, destroyer 10/1930, stricken 6/1934

DD25, 6/1924- CG19, 10/1930- DD25

Terry

116

Newport News

2/1909

21/8/1909

10/1910

Coast Guard cutter 6/1924, destroyer 10/1930, stricken 6/1934

DD26

Perkins, 11/1933- unnamed

175

Fore River, Quincy

3/1909

9/7/1910

11/1910

stricken 3/1935

DD27

Sterett

176

Fore River, Quincy

3/1909

12/5/1910

12/1910

stricken 3/1935

DD28, 6/1924- CG14, 10/1930- DD28

McCall

78

New York SB, Camden

6/1909

4/6/1910

1/1911

Coast Guard cutter 6/1924, destroyer 10/1930, stricken 6/1934

DD29, 4/1924- CG10, 5/1931- DD29

Burrows

79

New York SB, Camden

6/1909

23/6/1910

2/1911

Coast Guard cutter 4/1924, destroyer 5/1931, stricken 7/1934

DD30

Warrington

352

Cramp, Philadelphia

6/1909

18/6/1910

3/1911

stricken 3/1935

DD31

Mayrant

353

Cramp, Philadelphia

4/1909

23/4/1910

7/1911

stricken 3/1935



Displacement normal, t

742

Displacement full, t

887

Length, m

88.1 wl 89.6 oa

Breadth, m

8.00

Draught, m

2.40

No of shafts

DD22 - 25, 28, 29: 3

DD26, 27, 30, 31: 2

Machinery

DD22 - 25, 28, 29: 3 Parsons steam turbines, 4 Normand boilers

DD26, 27: 2 Curtis steam turbines, 4 Normand boilers

DD30, 31: 2 Zoelly steam turbines, 4 Normand boilers

Power, h. p.

DD22 - 25, 28, 29: 12000

DD26, 27, 30, 31: 10000

Max speed, kts

DD22 - 25, 28, 29: 29.5

DD26, 27, 30, 31: 28

Fuel, t

oil 180 - 230

Endurance, nm(kts)

DD22-25, 28, 29: 3343(15)

DD26, 27: 1864(15)

Armament

5 x 1 - 76/50 Mk III/V/VI, 3 x 2 - 450 TT

Complement

86

Ship project history: These ten improved Smiths were authorized in May 1910. The principal change was replacement of the former single torpedo tubes by twin tubes. They introduced oil fuel for US destroyers. Most had three shafts, but four ships (DD26-27 and DD30-31) had two turbines (Curtis in the Fore River ships, Zoelly in the Cramp ships), with cruising stages incorporated in the main turbines. Cramp, Fore River, and Newport News ships had their two amidships funnels trunked together.

Modernizations: 1915, Mayrant: Zoelly steam turbines were replaced by 2 sets Westinghouse geared steam turbines (13000 hp)

1917 - 1918, all: + 1 DCT (Y-gun), 2 DCR

Naval service: No significant events.

Mayrant 1911

Ivan Gogin, 2014
