ROMULUS coastal destroyers (1935/1940)

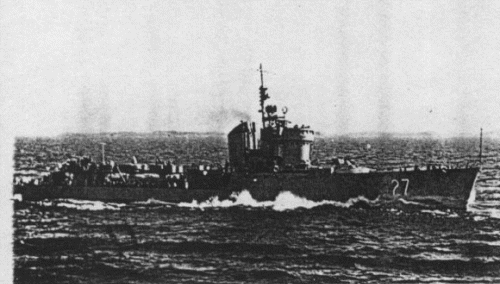

Romulus 1940

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Romulus (ex-Spica) 27   BSN, Naples, Italy 5.1933 11.3.1934 5.1935 // 3.1940 stricken 8.1958
Remus (ex-Astore) 28   BSN, Naples, Italy 1933 22.4.1934 6.1935 // 3.1940 stricken 8.1958


Technical data


Displacement standard, t

780

Displacement full, t

995

Length, m

78.0 pp 80.4 oa

Breadth, m

8.20

Draught, m

3.09 max

No of shafts

2

Machinery

2 sets Tosi geared steam turbines, 2 Yarrow boilers

Power, h. p.

19000

Max speed, kts

34

Fuel, t

oil 207

Endurance, nm(kts)1900(15)
Armament

3 x 1 - 100/47 OTO 1931, 3 x 2 - 20/65 Breda 1935, 2 x 2 - 450 TT, 2 DCT, 20 mines

Complement

94



Standard scale images


<i>Remus</i> 1942
Remus 1942


Graphics


<i>Romulus</i> 1940
Romulus 1940


Project history

Former Italian Spica class torpedo boats were bought by Sweden 27.3.1940. After overdue arrival to Sweden (see Puke class) they have undergone all-round trials and have made good impression upon the Swedish naval staff. Later they served as prototype for home-built escort destroyers of Mode class.

Modernizations

1953, both: - 1 x 1 - 100/47, 2 x 2 - 450 TT; + 1 x 3 - 305 Squid Mk 4 ASWRL, radars, sonar

Naval service

Both ships were re-rated as frigates in 1953.
