KLAS HORN destroyers (1932)





Klas Uggla 1932 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Klas Horn 3 165 Kockums, Malmö 1929 13.6.1931 9.1932 stricken 8.1958
Klas Uggla 4 298 Örlogsvarvet Karlskrona 1929 18.6.1931 8.1932 sunk 17.9.1941


Technical data


Displacement standard, t

1004

Displacement full, t

~1190

Length, m

91.0 pp 92.4 oa

Breadth, m

8.90

Draught, m

3.70 max

No of shafts

2

Machinery

2 sets de Laval geared steam turbines, 3 Penhoët boilers

Power, h. p.

26000

Max speed, kts

37

Fuel, t

oil 170

Endurance, nm(kts)1600(20)
Armament

3 x 1 - 120/44 K/45 M24B, 2 x 1 - 40/39 M22, 2 x 3 - 533 TT, 2 DCT, 2 DCR, 20 mines

Electronic equipmentpresumably hydrophone
Complement

119



Standard scale images


<i>Klas Horn</i> 1940
Klas Horn 1940


Graphics

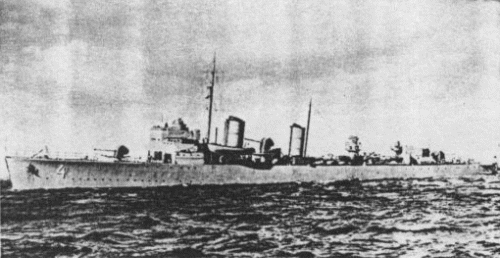

<i>Klas Uggla</i> 1932 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Klas Uggla 1932 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Development of Ehrensköld class, the order for building was given out in 1928. They were differed by more powerful machinery, insignificant increased hull length and TTs of new model.

Modernizations

mid-1930s, both: - 2 x 1 - 40/39; + 2 x 1 - 40/56 K/60 M32

1939, both: new boilers were installed; - 2 x 1 - 40/56; + 2 x 2 - 25/55 K/58 M32

Naval service

Both ships were lost 17.9.1941 in Haarsfjärden naval base near Stockholm as a result of explosion on destroyer Klas Uggla and subsequent fire. Klas Horn subsequently was salvaged and after repair was commissioned in December, 1943.

Many thanks to Wolfgang Stöhr for additional information on this page.
